HEATSCOPE® STAND – PURE & NEXT (White)
White stand for a compatible HEATSCOPE PURE or NEXT. 60 cm base and 215.1 cm height; heater not included.
Floor-standing support • PURE and NEXT • White

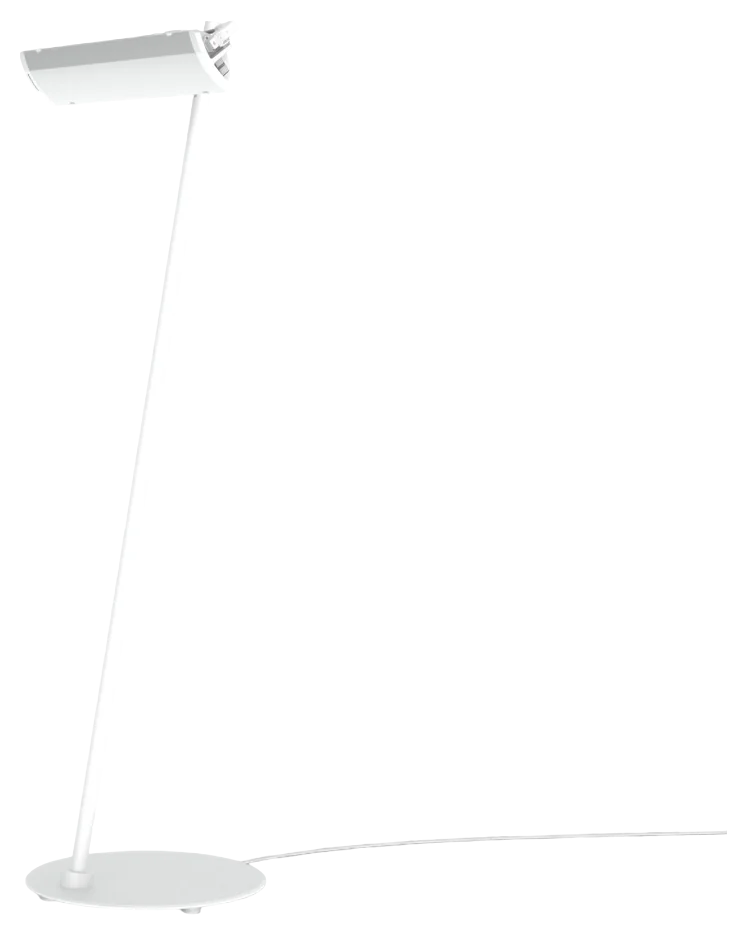

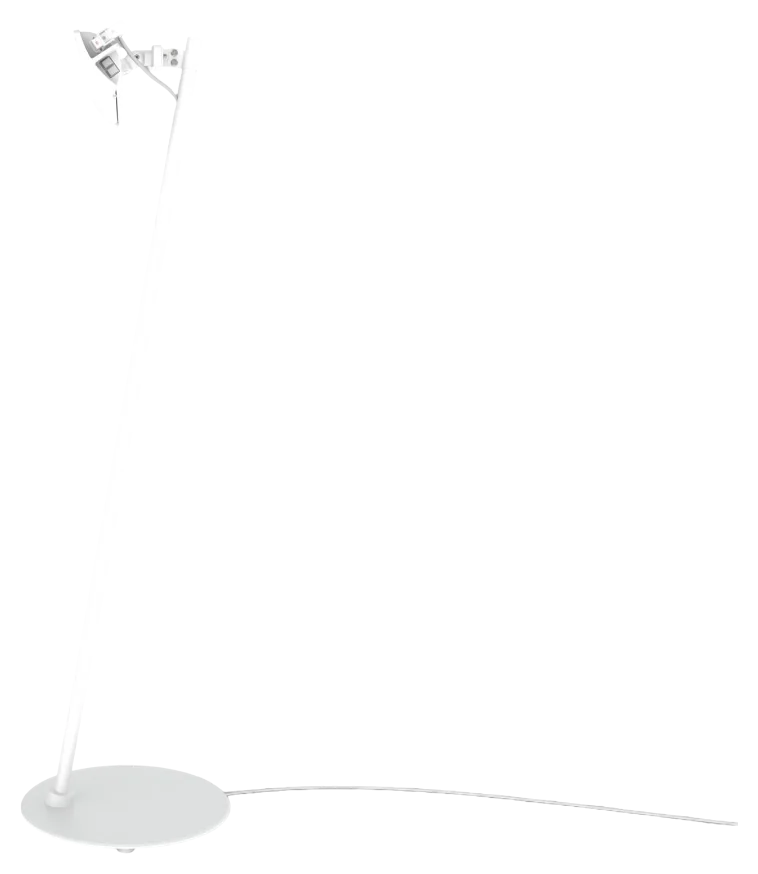

White HEATSCOPE stand for PURE or NEXT
A white finish for installing a compatible radiant heater on a stand without wall mounting.
This HEATSCOPE® STAND White is intended for compatible PURE and NEXT heaters. The white finish suits light spaces; it does not change the heater’s performance.
Allow for the base and movement around the stand before choosing its position.
Base and stability
The base measures 600 mm in diameter.
The total weight is 25.5 kg. Follow the stability requirements in the instructions: weight alone does not protect against every tipping risk.
Connection
The heater connects through an ILME connection. The stand is rated IP65, but protection of the complete setup also depends on the mounted heater.
Selecting the heater
This support has been machined to precise tolerances to accommodate exclusively two flagship models from the German brand:
- PURE: choose the finish and controls to suit the project.
- NEXT: check its own protection and installation requirements.
Frequently Asked Questions: Use and Maintenance of the Stand
Can this stand be used with the Vision or Spot range?
No, the upper mounting plate and weight-balancing system were custom-designed for the PURE and NEXT models. Vision and Spot heaters have different mounting points and dimensions that are not compatible with this product.
Can the complete setup be exposed to rain?
The stand’s IP65 rating does not automatically apply to the heater. Follow the instructions for each component.
Is the stand difficult to assemble?
Assemble according to the instructions. Have a qualified person check the power supply and any electrical adaptation.
Is the heater angle adjustable once installed?
Yes. The upper mounting head acts as a tilting joint. Once the heater is fixed at a height of 2.15 m, you can tilt it forwards to direct the infrared beam precisely towards the centre of your table or outdoor seating area.
Complete Technical Data Sheet (MHS-PN-STD-WT)
- Product type: Mobile outdoor floor stand
- Strict compatibility: HEATSCOPE® PURE & NEXT radiant heaters
- Total height: 2151 mm (2.15 metres)
- Base diameter: 600 mm (0.6 metre)
- Structure weight: 25.5 kg
- Materials: Galvanised steel and powder-coated metal
- Finish: White finish
- Internal connector: Industrial ILME plug
- Mains cable: SCHUKO plug (2.5m free cable)
- Overall ingress protection: IP65 for the stand
Coordinating the support and radiant heater
The HEATSCOPE® STAND White offers a floor-standing solution for a compatible heater. Check space, controls and connection before installation.
